6101 T63 Aluminum Sheet for Busbar Conductors

Loading Port： Tianjin/Qingdao, China
Sample： A4 Sized
Payment Terms： L/C,D/P,T/T
Delivery time： Within 15-30 Days
Email Us:sale06@mingtai-al.com

Contact Us

6101 T63 Aluminum Sheet

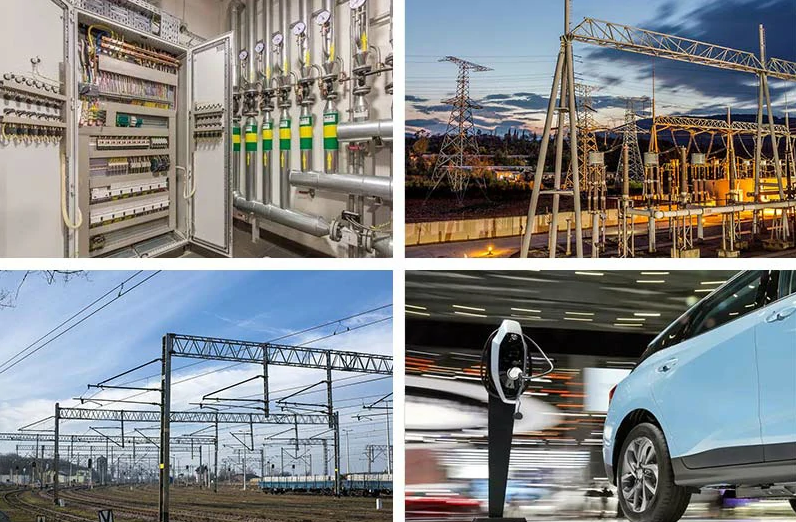

6101 T63 aluminum alloy is a high-strength aluminum magnesium silicon alloy, which is a highly conductive aluminum plate widely used in conductive components of new energy electric vehicles. This material is used to replace traditional copper materials due to its excellent conductivity and mechanical properties, in order to manufacture components such as bus conductors, high-voltage boxes, and conductive buses for new energy electric vehicles.

6101 aluminum alloy has high strength and good tensile strength. Its tensile strength is 1.5 times that of copper wire, but its mass is only half that of copper wire. This makes it less likely to damage the wire during busbar installation, making it a typical material for busbar conductors in new energy electric vehicles and supercharging stations. In addition, 6101 aluminum alloy also has good corrosion resistance and weldability, making it suitable for processing high-strength bus conductors.

Why choose 6101 T63 aluminum sheet as the material for busbar conductor

High strength: 6101 aluminum alloy has high tensile strength and is suitable for withstanding large mechanical loads

Tensile strength: 221 MPa

Yield strength: 193 MPa

Elongation rate: 15%

Good plasticity and toughness: This material not only has high strength, but also has good plasticity and toughness, allowing it to maintain good deformation ability when subjected to external forces.

Corrosion resistance: 6101 aluminum alloy has good corrosion resistance, which makes it stable in various industrial environments.

Weldability: 6101 aluminum alloy has good weldability and can be used for applications such as manufacturing high-strength bus conductors that require welding.

Machinability: 6101 aluminum alloy has a high degree of machinability and can be processed through various metal processing techniques to meet specific application requirements.

Heat treatment performance: Through heat treatment, the mechanical properties of 6101 aluminum alloy can be further enhanced, making it more suitable for heavy load and high-pressure applications.
